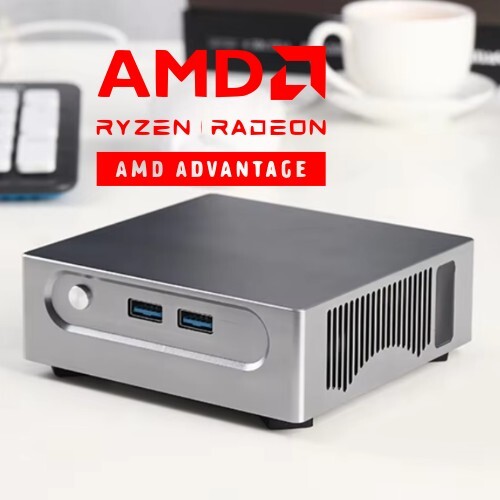

AMD Ryzen 7 Gaming Mini PC

The AMD Ryzen 7 5700U is a mobile processor with 8 cores, launched in January 2021. It is part of the Ryzen 7 lineup, using the Zen 2 (Lucienne) architecture with Socket FP6. Thanks to AMD Simultaneous Multithreading (SMT) the core-count is effectively doubled, to 16 threads. Ryzen 7 5700U has 8 MB of L3 cache and operates at 1800 MHz by default, but can boost up to 4.3 GHz, depending on the workload. AMD is making the Ryzen 7 5700U on a 7 nm production node using 9,800 million transistors. The silicon die of the chip is not fabricated at AMD, but at the foundry of TSMC. The multiplier is locked on Ryzen 7 5700U, which limits its overclocking potential.

With a TDP of 15 W, the Ryzen 7 5700U consumes very little energy. AMD's processor supports DDR4 memory with a dual-channel interface. The highest officially supported memory speed is 3200 MT/s. For communication with other components in the machine, Ryzen 7 5700U uses a PCI-Express Gen 3 connection. This processor features the Radeon Graphics 512SP integrated graphics solution.

Hardware virtualization is available on the Ryzen 7 5700U, which greatly improves virtual machine performance. Programs using Advanced Vector Extensions (AVX) can run on this processor, boosting performance for calculation-heavy applications. Besides AVX, AMD is including the newer AVX2 standard, too, but not AVX-512.
